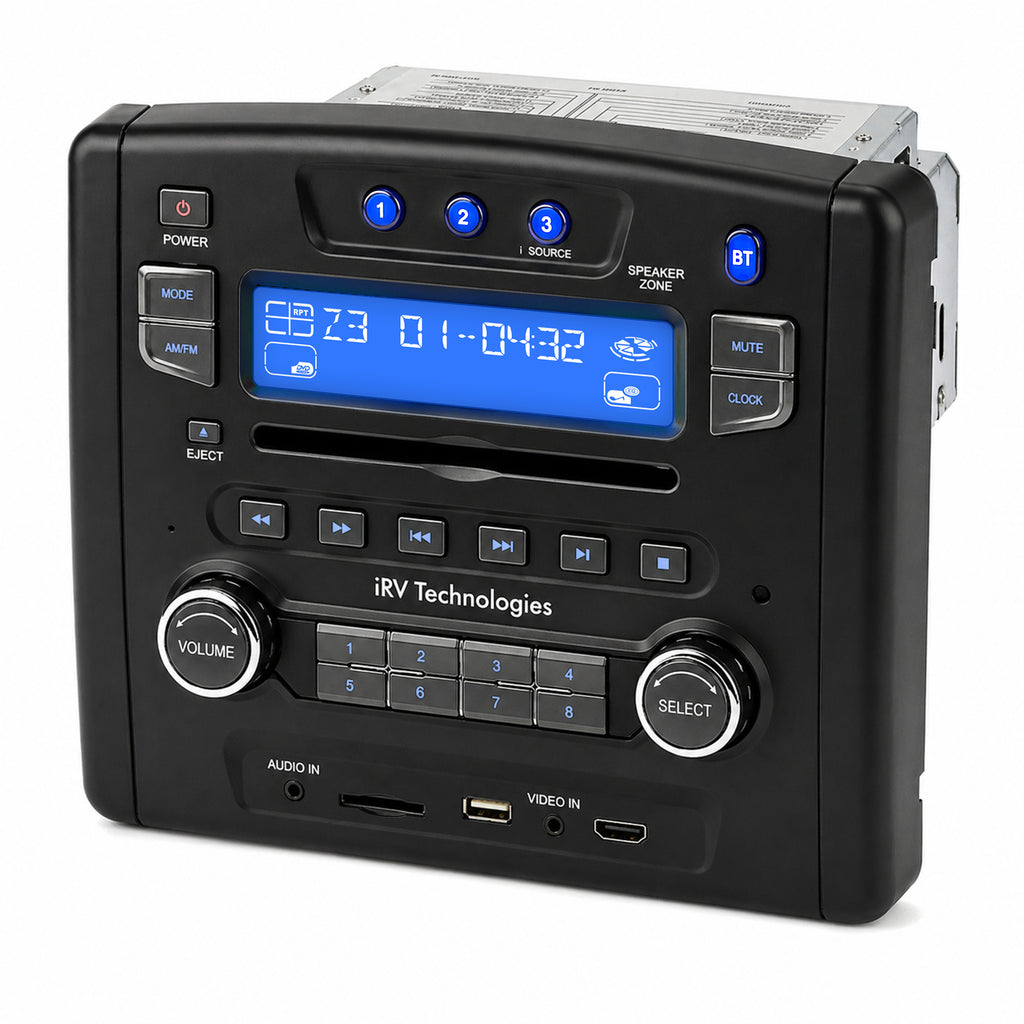

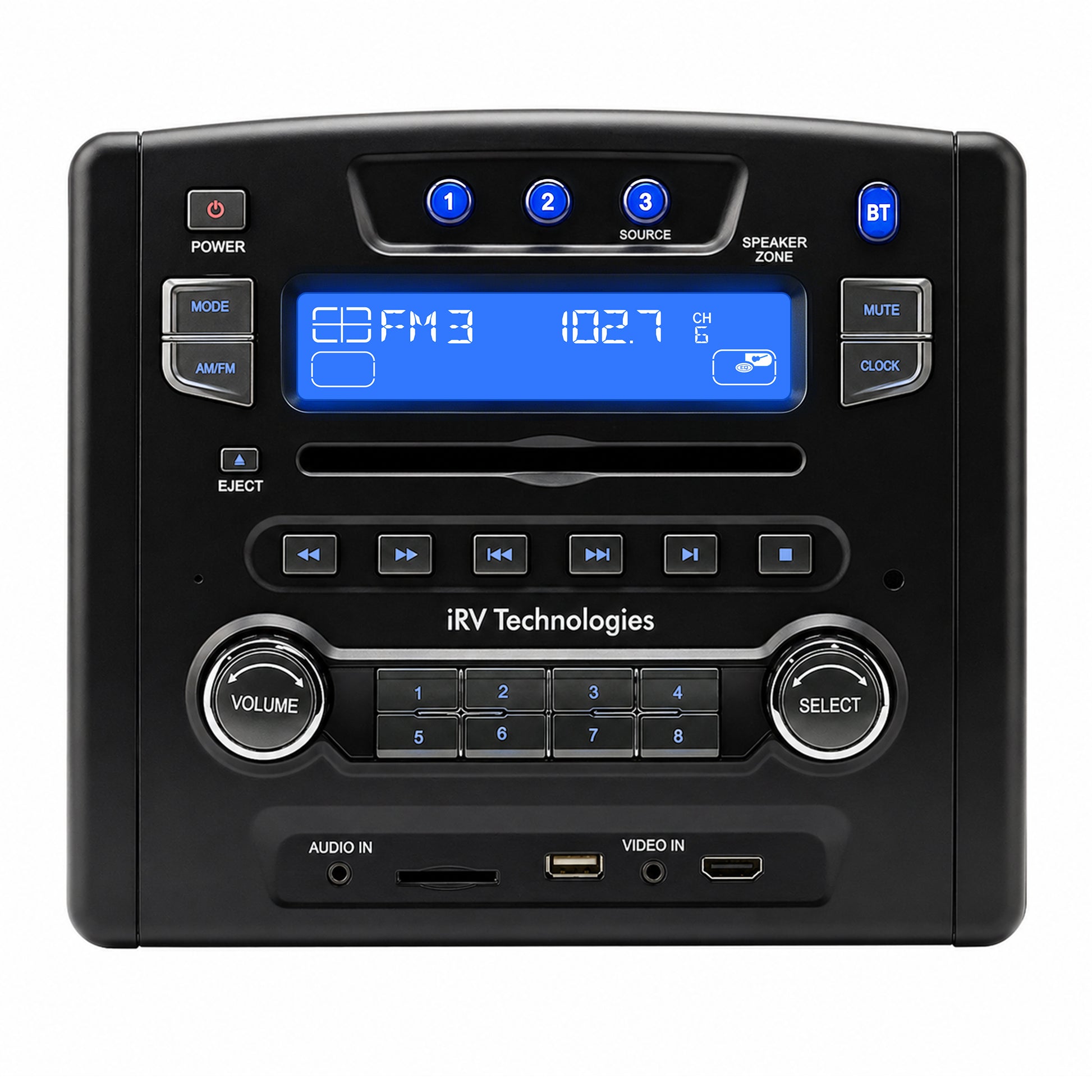

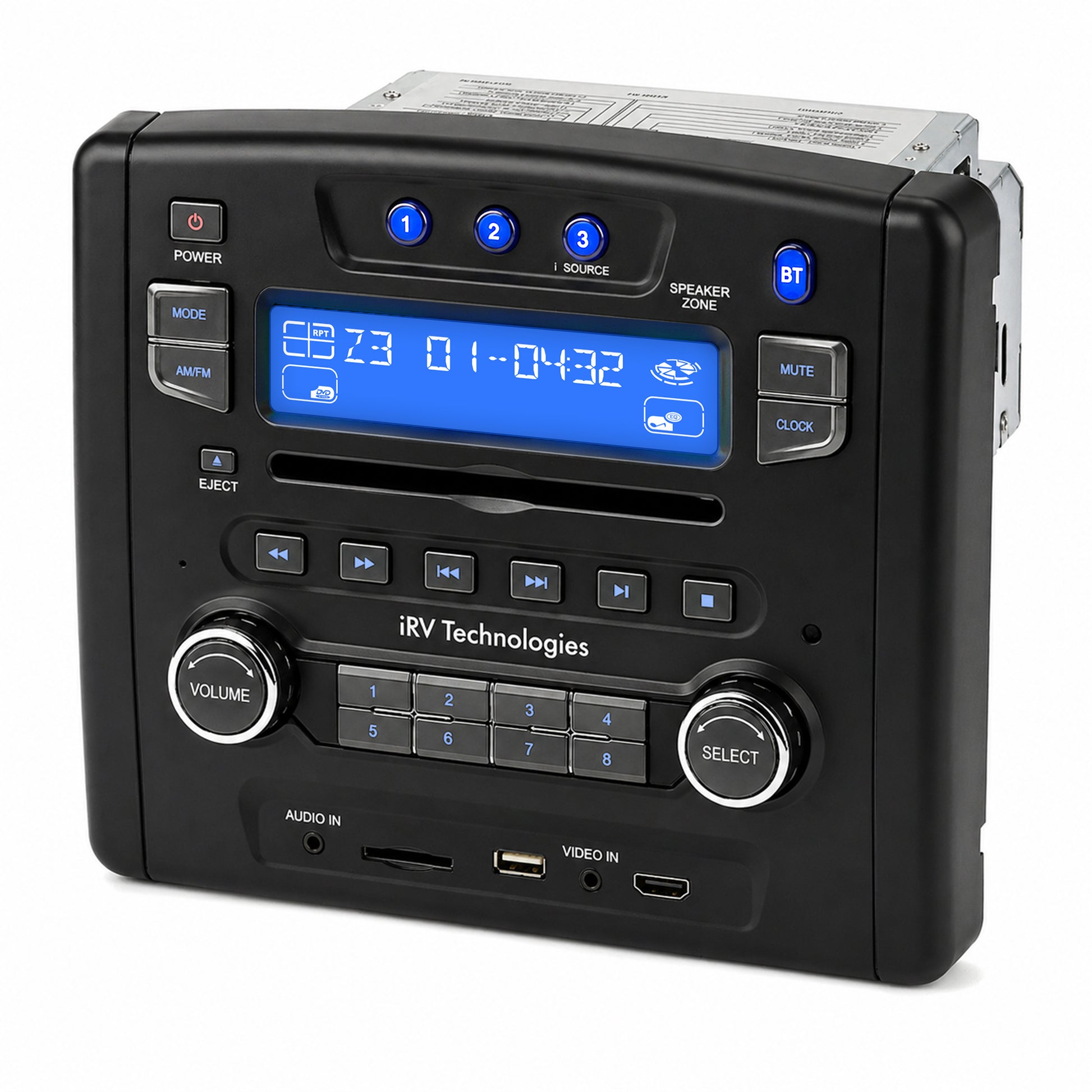

iRV34 3-Zone Audio Receiver
iRV34 is a high-performance wall-mount receiver designed specifically for the modern camper. As a direct upgrade for older systems like the Genesis GT-2.0 (compatible with same cutout size), it integrates modern connectivity with traditional media playback.

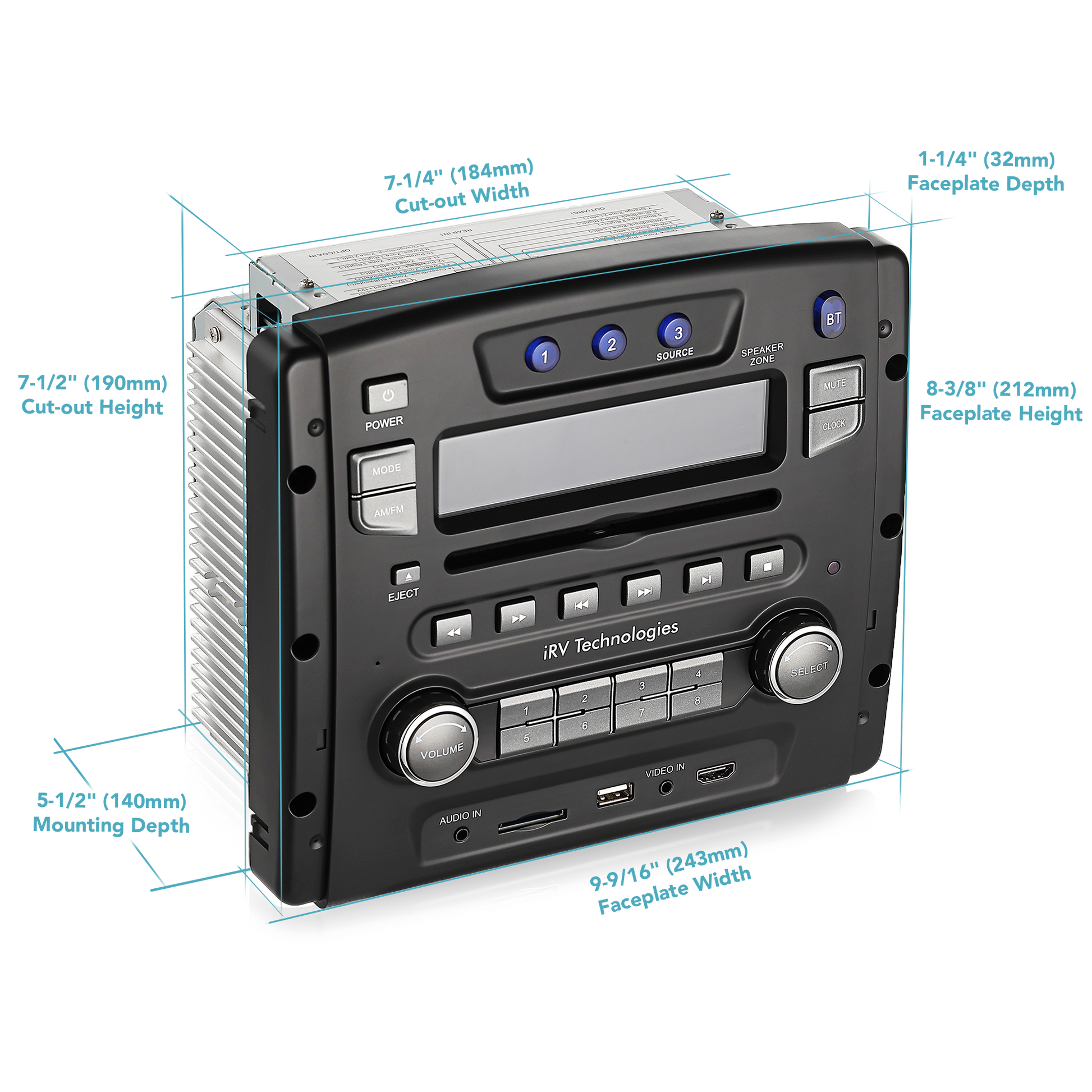

Seamless Direct Replacement: Engineered for a perfect fit in standard RV wall-mount cutouts. A hassle-free upgrade for older Concertone ZX85, ZX75, ZX50, ZX25 & Genesis GT2.0 motorhome stereos without needing cabinet modifications
3-Zone Audio Management: Features a versatile 3-zone output where Zone 1 and Zone 2 provide synchronized interior surround sound for your living area and bedroom, while Zone 3 operates independently. This allows you to listen to the radio outdoors while others watch a DVD inside.
HDMI ARC & Connectivity: Features Rear HDMI OUT with ARC (Audio Return Channel), allowing you to stream high-quality TV audio back to the RV speakers with a single cable. Includes Front/Rear HDMI inputs for Blu-ray, Gaming (PS5/Xbox), and streaming devices.
Comprehensive Multi-Media Hub: Supports a wide range of formats including DVD, CD, MP3, and MP4. Features Front USB and SD slots for digital playback and device charging, along with AM/FM receiver to keep you connected in remote areas.
Bluetooth 5.0 & App Control: Equipped with a Bluetooth 5.0 module for static-free music streaming. Download the APP (iOS/Android) to turn your smartphone into a wireless remote for easy multi-zone management from anywhere in your trailer.
Key Features
- Voltage: 12V DC Negative Ground
- Zone Configuration: 3 Zones
- Zone 1: 2.1 (2 speakers + 1 subwoofer) / Zone 2: 2.0 / Zone 3: 2.0, Independent
- Zone 1 and Zone 2 share the same audio source with individually adjustable volume
- Zone 3 can play a completely different source with independent volume control
- Total Speaker Outputs: 7 Speakers
- Amplifier Power: 130W Total
- Media Formats: CD / MP3 / MP4 / DVD (4.75-inch Disc Slot)
- Radio Tuner: AM (16 Presets) / FM (24 Presets)
- Bluetooth: Yes (No NFC Tag)
- USB Port: 1 Front USB
- SD Card Slot: 1 Front SD Card Slot
- HDMI Input: 1 Front HDMI IN + 1 Rear HDMI IN
- HDMI Output: 1 Rear HDMI OUT (ARC)
- ARC Support: Yes
- CEC Support: No
- AV Input: 1 Rear RCA AV IN + 1 Front 3.5mm AV IN
- AUX Input: 1 Front 3.5mm Socket IN (Audio Only)
- AV Output: 1 Rear RCA AV OUT
- Subwoofer Output: No (dedicated RCA line output not available; Zone 1 drives subwoofer via speaker-level output)
- Optical/Coaxial Input: Yes (Optical Coaxial Digital Audio IN)
- Remote Control Input: Yes (Rear 3.5mm Wired Remote IN)
- APP Remote Control: Yes
- Display: HTN Screen (Blue Background, White Text)
- NFC: No
- Wiring: BATT (Yellow), GND (Black)
- ACC Wire: No
- ANT Power Out Wire: No
- Net Weight: 2470g / 5.45lb
